NOVA ELITE SERIES
INDUSTRIAL CO2, 10 / 14 / 16
Full-sheet flatbed lasers up to 1600 × 1000 mm and 150W — with a party trick: the NOVA splits apart to pass through a standard doorway, then reassembles on your floor. Chiller, 500W exhaust and a 750W air compressor are all built in. Delivered, installed and commissioned in Ireland by us.
Who it's for
- Signage and display manufacturers cutting large sheet stock
- Engraving businesses moving from benchtop to batch production
- Joineries, fit-out and fabrication shops adding laser capability
- Schools of engineering, colleges and larger makerspaces
- Anyone whose bottleneck is bed size or cycle time, not skills
Range comparison block

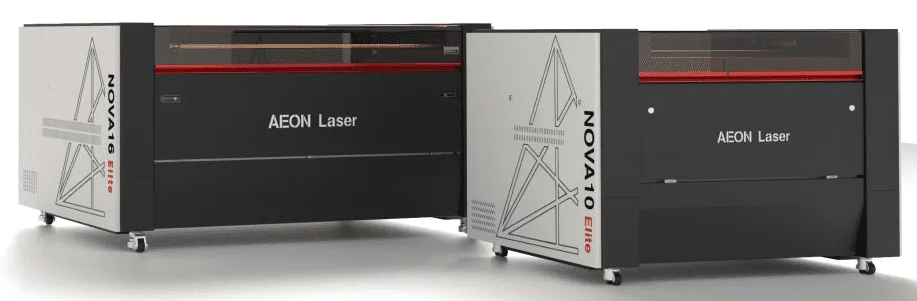

NOVA10 Elite
“The compact industry.”
A 1000 × 700 mm bed in the smallest industrial footprint. The step up when a MIRA9 S is full every day.
NOVA14 Elite
“The production standard.”
1400 × 900 mm handles half-sheet stock and serious batch runs. The most common choice for growing production floors.

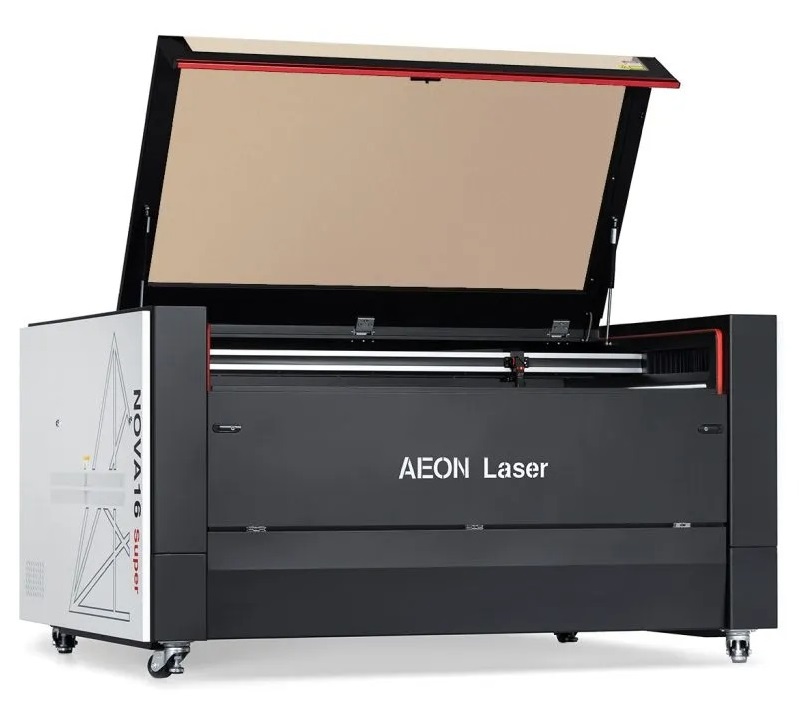

NOVA16 Elite
“Full capacity.”
1600 × 1000 mm and up to 150W — maximum bed and maximum power in the Elite range.
Comparison table
| Parameter | NOVA10 Elite | NOVA14 Elite | NOVA16 Elite |
|---|---|---|---|
|
Working area |
1000 × 700 mm |
1400 × 900 mm |
1600 × 1000 mm |
|
Z-axis lift |
200 mm |
200 mm |
200 mm |
|
CO2 glass tube options |
90W / 100W |
100W / 130W |
130W / 150W |
|
Max engraving speed |
1200 mm/s |
1200 mm/s |
1200 mm/s |
|
Max acceleration |
5G |
5G |
5G |
|
Table lift capacity |
120 kg |
120 kg |
120 kg |
|
Built-in chiller |
5000 series |
5200 series |
5200 series |
|
Built-in exhaust fan |
500W |
500W |
500W |
|
Air assist |
750W compressor + 24L tank |
750W compressor + 40L tank |
750W compressor + 40L tank |
|
Machine size (mm) |
1500 × 1210 × 1125 |
1900 × 1410 × 1125 |
2100 × 1510 × 1125 |
|
Net weight |
402 kg |
532 kg |
544 kg |
|
Rated power (incl. tube) |
2300W |
2300W |
2300W |
Shared specification
Every NOVA Elite includes:
- Smart monitoring panel with fault alarm and diagnosis as standard
- AutoFocus, red-dot positioning, WiFi file transfer, material pass-through door
- Honeycomb + knife table with airflow-through design and material collection tray
- 2.5″ lens standard; 2.0″ and 4.0″ optional (with lens slot)
- Class 1 safety: full enclosure, lid interlock, water-flow protection, water-temperature alarm
- RDWorks included; LightBurn optional — Windows & Mac (CorelDRAW / Illustrator / AutoCAD workflows)
- Tool-less optics: tube docking station, accessible mirrors, magnetic lens carriage
- CE certified · FDA approved · 1-year machine & parts warranty · 6 months on laser tube
- Add-ons: rotary attachment, camera, air filter
Feature sections
Splits to fit a standard doorway
The NOVA’s frame separates for delivery, passes through a standard door, and reassembles on your floor. Industrial capacity without knocking a wall
All-in-one plant room
Chiller, 500W exhaust fan and a 750W air compressor with receiver tank are inside the cabinet. One machine, one power connection, one extraction route.
Smart diagnostics
The monitoring panel watches temperatures and flags faults before they cost you a job — and tells you what’s wrong before you ring us.
Redline motion platform
Rigid unibody, industrial linear rails, featherweight head: 1200 mm/s at 5G, all day
Built for shifts
Sealed optical path, enclosed rails (Super Clean Pack), bullseye levelling gauge, mechanical microswitches rated 200,000+ cycles.
Information Questions
Frequently Asked Questions
Tell us what you plan to cut or engrave, the materials and roughly the sizes, and we will recommend the right bed size and wattage. We would rather point you to a smaller machine that suits than oversell you one you do not need.
Yes, we deliver, install and train anywhere in Ireland.
All machines run RDWorks, included as standard, and are fully compatible with LightBurn (optional), which most users prefer. They work with design files from CorelDRAW, Illustrator and AutoCAD, on Windows and Mac.
Yes. They are fully enclosed Class 1 laser products with lid and side-panel interlocks that cut the laser if opened, CE certified and FDA approved. They are widely used in supervised school and college settings.
One year on the machine and parts, and six months on the laser tube. Full terms are on our Terms of Warranty page.
Quick Enquiry
Customer Reviews
EXCELLENT
Based on 20 reviews
Michael
a year ago
Excellent machine and outstanding service. Delivery was quick, installation was professionally handled, and the training made it easy for our entire team to start working confidently.
Sophia
a year ago
We are extremely happy with our Aeon laser. Everything arrived exactly as promised, installation was smooth, and the support team answered every question quickly and professionally.
David
a year ago
From ordering through installation, the experience was excellent. Having the machine in Irish stock made delivery straightforward, while training and support gave us confidence.
Olivia
a year ago
The Aeon machine has been a fantastic addition to our workshop. Fast delivery, professional commissioning, and excellent training made the entire process simple, smooth, and hassle-free.
James
a year ago
Great quality machine backed by brilliant service. Installation was seamless, training was thorough, and having reliable local support gives our team complete confidence moving forward too.
In stock in Ireland.
Installed by us.
Site check before dispatch (access, power, extraction). Delivered nationwide, split and reassembled on-site, levelled, commissioned and connected. LightBurn configured and operator training on install day. Spares held in Ireland. 1-year machine warranty.
