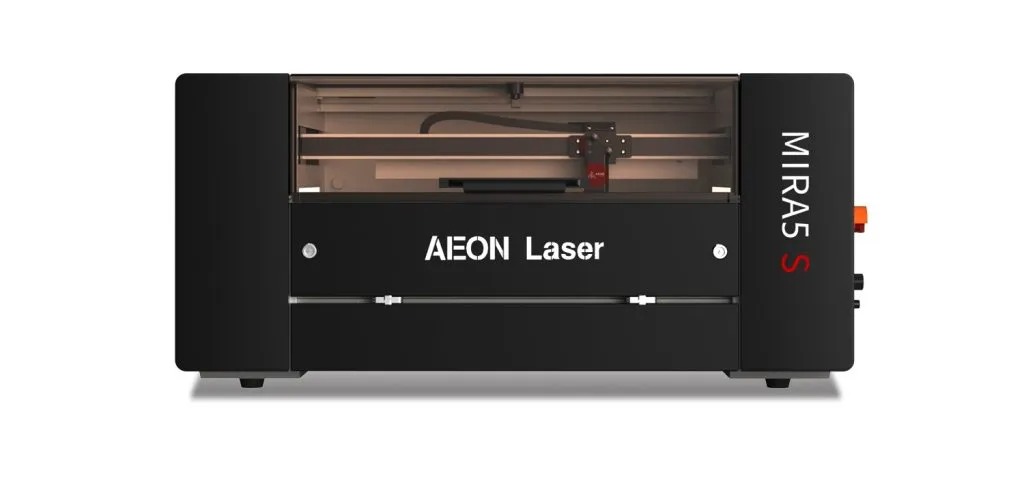

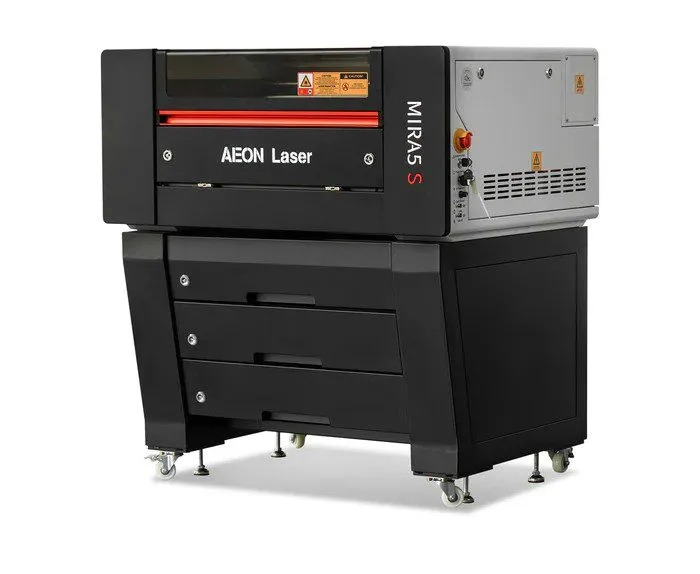

MIRA5
S.
Small machine. Serious power.
A fully enclosed desktop CO2 laser that runs off a standard socket and engraves 2–3× faster than hobby-grade machines. Everything is built in — chiller, exhaust, air assist — so it works in a classroom, a spare room or a corner of the workshop.
MIRA S range — what it is

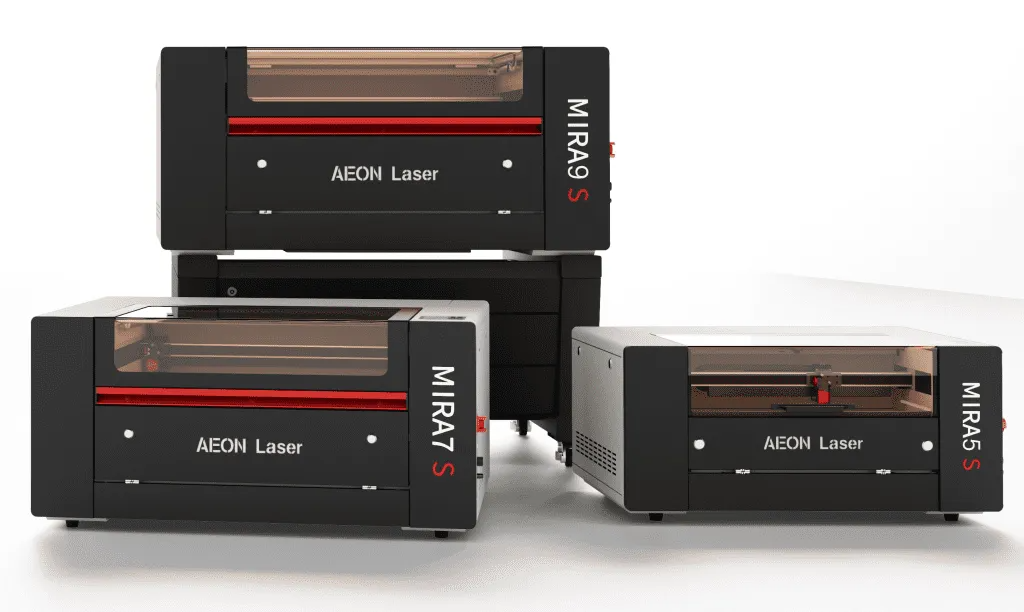

The MIRA S is Aeon’s Redline-series desktop and benchtop CO2 laser family: three frame sizes (MIRA5 S, MIRA7 S, MIRA9 S), each available with glass CO2 tubes or premium RF metal tubes. All-in-one design — water chiller, exhaust fan and air assist are built into the cabinet, so nothing external to buy or plumb. All machines are fully enclosed Class 1 laser products with lid interlocks, CE certified and FDA approved — the safety spec that matters for schools.
Who it's for
- Schools, ETBs and makerspaces: Class 1 enclosure and interlocks for supervised classroom use
- Crafters and first-time buyers testing the waters
- Startups launching a home-based engraving business
- Established shops needing a dedicated second machine (e.g. tumbler engraving with rotary)
- Engraves medium cylindrical items with the optional rotary attachment
Tube options block
| Option | Best For |
|---|---|
|
45W CO2 glass |
Standard choice — cutting and engraving timber, acrylic, leather, laminates |
|
60W CO2 glass |
Thicker cutting, faster job times |
|
RF30W metal tube |
Fine detail engraving, long tube life, air-cooled precision work |
|
RF60W metal tube |
Premium: fine detail at production speed |
Full specification table
| Parameter | MIRA5 S |
|---|---|
|
Working area |
500 × 300 mm |
|
Laser source |
CO2 glass 45W / 60W, or RF30W / RF60W metal tube |
|
Max engraving speed |
1200 mm/s |
|
Max acceleration |
5G |
|
Table lift capacity |
15 kg |
|
Chiller / exhaust / air assist |
Built-in (3000 chiller, 60W inline fan, 45W air assist) |
|
AutoFocus / WiFi / red dot |
Standard |
|
Pass-through door |
Standard |
|
Tables |
Honeycomb + knife table, airflow-through |
|
Lens |
2.0″ standard; 1.5″ and 4.0″ optional |
|
Control |
Keypad & LCD; 1 GB internal memory |
|
Software |
RDWorks included; LightBurn optional (Windows & Mac) |
|
File formats |
DSP / PLT / BMP / DXF / AI / DWG |
|
Safety |
Class 1 · lid & side-plate interlocks · water-flow protection |
|
Certification |
CE certified · FDA approved |
|
Power |
220V single phase (110V available) |
|
Machine size / weight |
900 × 700 × 410 mm · 100 kg net (125 kg packed)
|
|
Package size |
990 × 790 × 600 mm |
|
Warranty |
1 year machine & parts · 6 months laser tube |
|
Add-ons |
Support table, rotary attachment, camera, air filter |
Feature sections
All-in-one cabinet
Chiller, exhaust fan and air assist are inside the machine. No external boxes, hoses or plumbing — just power and an extraction route
Tool-less optic path
The laser tube sits in a docking station: swap tubes without tools or beam realignment. Mirrors and the magnetic lens carriage clean or swap in seconds.
Redline motion platform
Rigid unibody frame, industrial linear rails and a featherweight laser head deliver 1200 mm/s engraving at 5G acceleration without losing precision.
Built to last
Sealed optical path in aluminium tubes, enclosed rails (Super Clean Pack), mechanical microswitches rated for 200,000+ cycles
LED status logo
The backlit Aeon logo doubles as a status light: white on standby, green running, red on error — readable across a classroom or workshop
Information Questions
Frequently Asked Questions
Tell us what you plan to cut or engrave, the materials and roughly the sizes, and we will recommend the right bed size and wattage. We would rather point you to a smaller machine that suits than oversell you one you do not need.
Yes, we deliver, install and train anywhere in Ireland.
All machines run RDWorks, included as standard, and are fully compatible with LightBurn (optional), which most users prefer. They work with design files from CorelDRAW, Illustrator and AutoCAD, on Windows and Mac.
Yes. They are fully enclosed Class 1 laser products with lid and side-panel interlocks that cut the laser if opened, CE certified and FDA approved. They are widely used in supervised school and college settings.
One year on the machine and parts, and six months on the laser tube. Full terms are on our Terms of Warranty page.
